SPRINKLER

SPRINKLER

Product Code: MTC 43

View parts

1/2 inces Full Circle Impact Plastic Mini Sprinklers

Applications

Overhead irrigation for extra range spacing up to 12m.

Recommended for closely spaced field crops like potato, leafy vegetables, cotton, oil seeds, pulses, cereals, fodder crops etc.



Technical Specification

Construction Material Engineering Plastic
Body Trajectory Angle 27 Degrees
Connection 1/2" Male Pipe Connection
Working Pressure 1.5 - 3.0 Kg/Cm2
Nominal Flow Rate 0.45 - 1.38m3/h (7.5 - 23.0 lpm)
Co-efficient Distribution Uniformly 82% to 95%(CDU)
Equivalent Nozzle 2.5 to 4.0 mm
Spread Nozzle 1.8mm & 2.5 mm
Diameter of coverage 20 to 26 Mts.
Maximum Spacing 14 Mts.







Features:

  • Light Weight, Compact and robust design.
  • Plastic Construction with minimum Metal Parts
  • Stainless Steel retraction spring maintains uniform rotation speed.
  • Better C.D.U(Uniform Water Distribution)
  • Integrated stream straightening vane for maximum coverage range.
  • Optional Sand protection cover to protect the spring from sand.
  • High impact engineering plastic provide resistance to corrosion, chemicals and UV radiation.

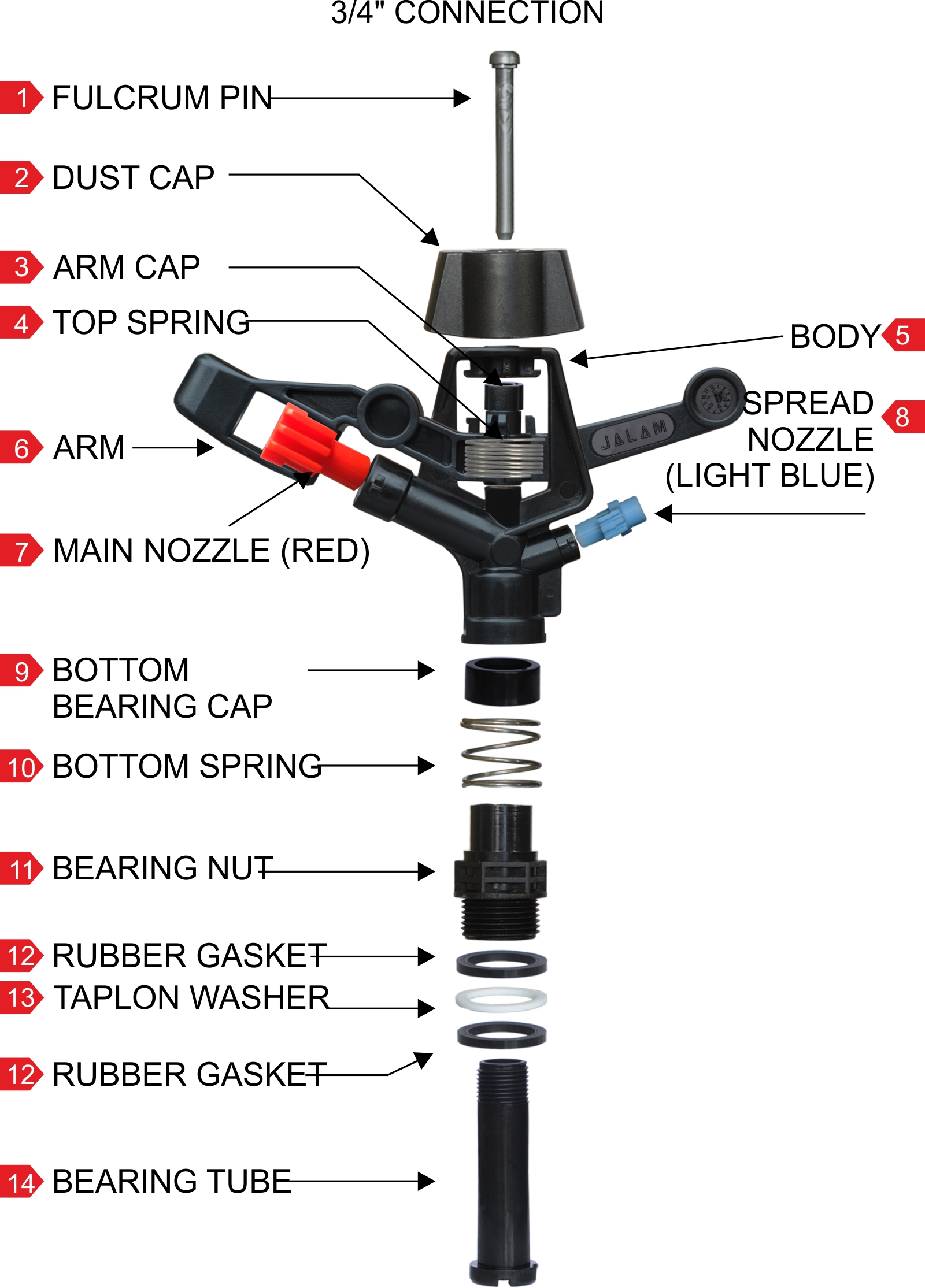

Product's Parts

FULCRUM PIN
FULCRUM PIN
Code: P86

1.40

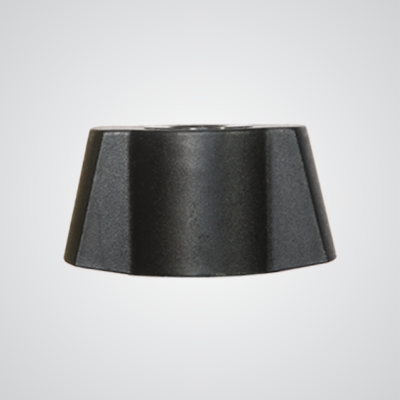

DUST CAP
DUST CAP
Code: P26

2.00

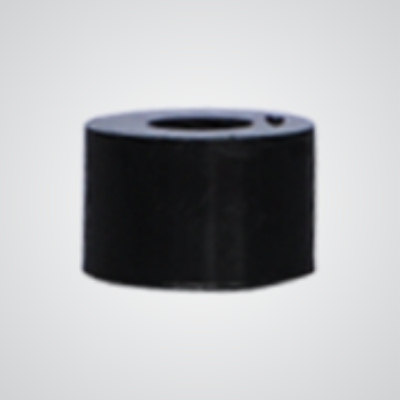

ARM CAP
ARM CAP
Code: P34

0.30

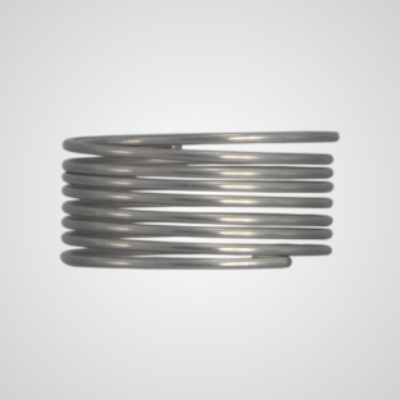

TOP SPRING
TOP SPRING
Code: OS22

4.30

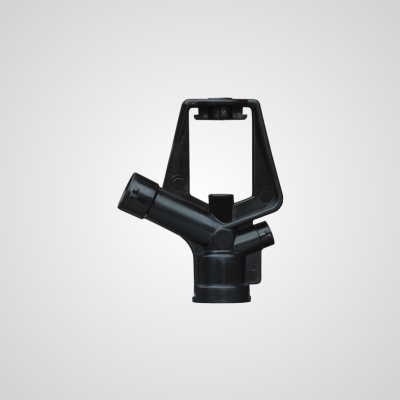

BODY
BODY
Code: P33

11.90

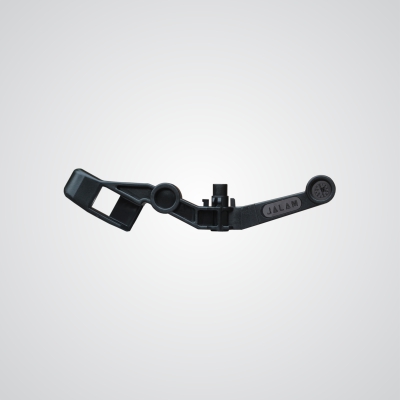

ARM
ARM
Code: P32

11.20

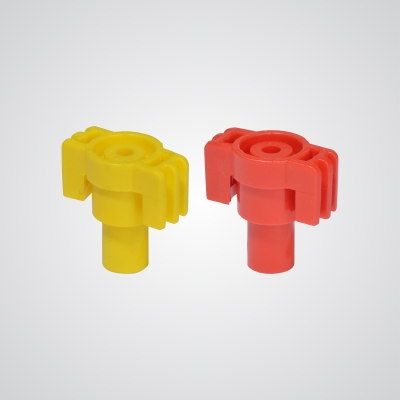

Main Nozzle Yellow 4.1 / RED 4.5
Main Nozzle Yellow 4.1 / RED 4.5
Code: P53, P54

2.50

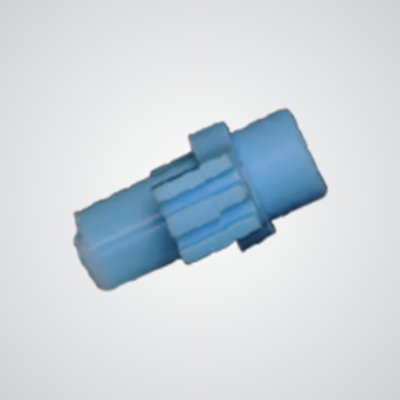

SPREAD NOZZLE (LIGHT BLUE)
SPREAD NOZZLE (LIGHT BLUE)
Code: P80

0.80

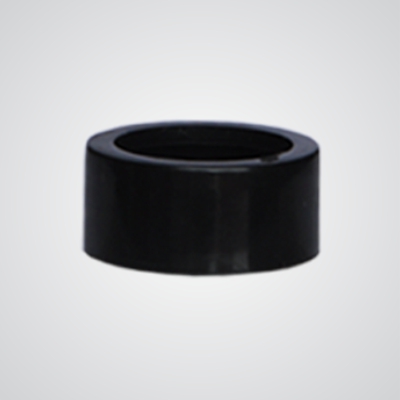

BOTTOM BEARING CAP
BOTTOM BEARING CAP
Code: P31

1.00

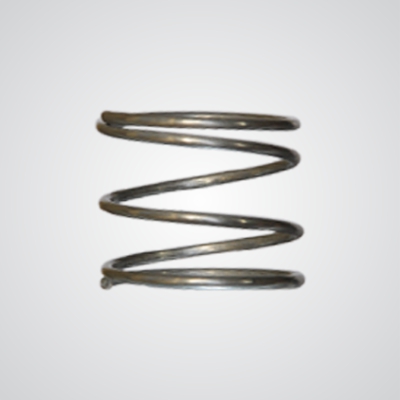

BOTTOM SPRING
BOTTOM SPRING
Code: OS23

3.40

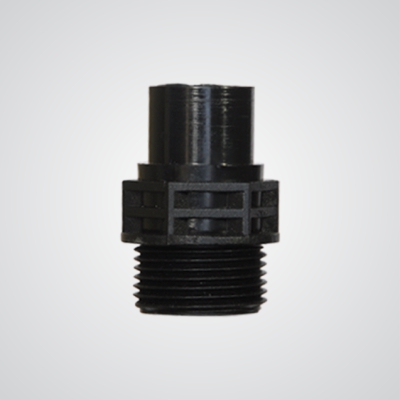

BEARING NUT
BEARING NUT
Code: P30

5.20

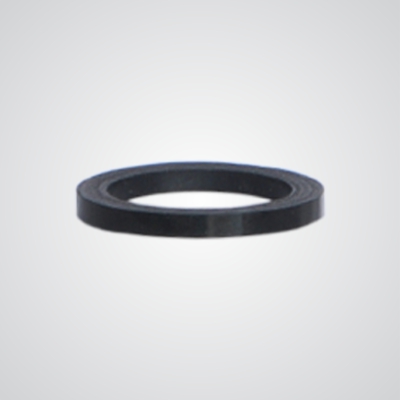

RUBBER GASKET
RUBBER GASKET
Code: OS17

0.75

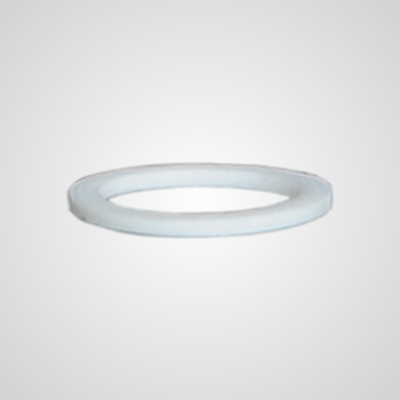

TAPLON WASHER
TAPLON WASHER
Code: OS21

3.40

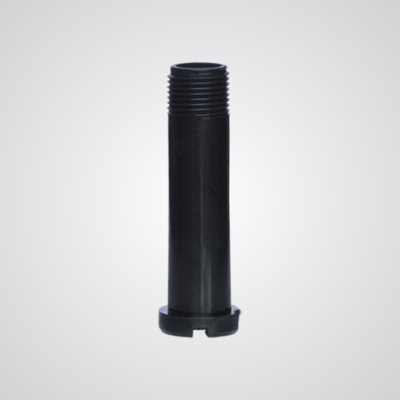

BEARUING TUBE
BEARUING TUBE
Code: P29

4.50
